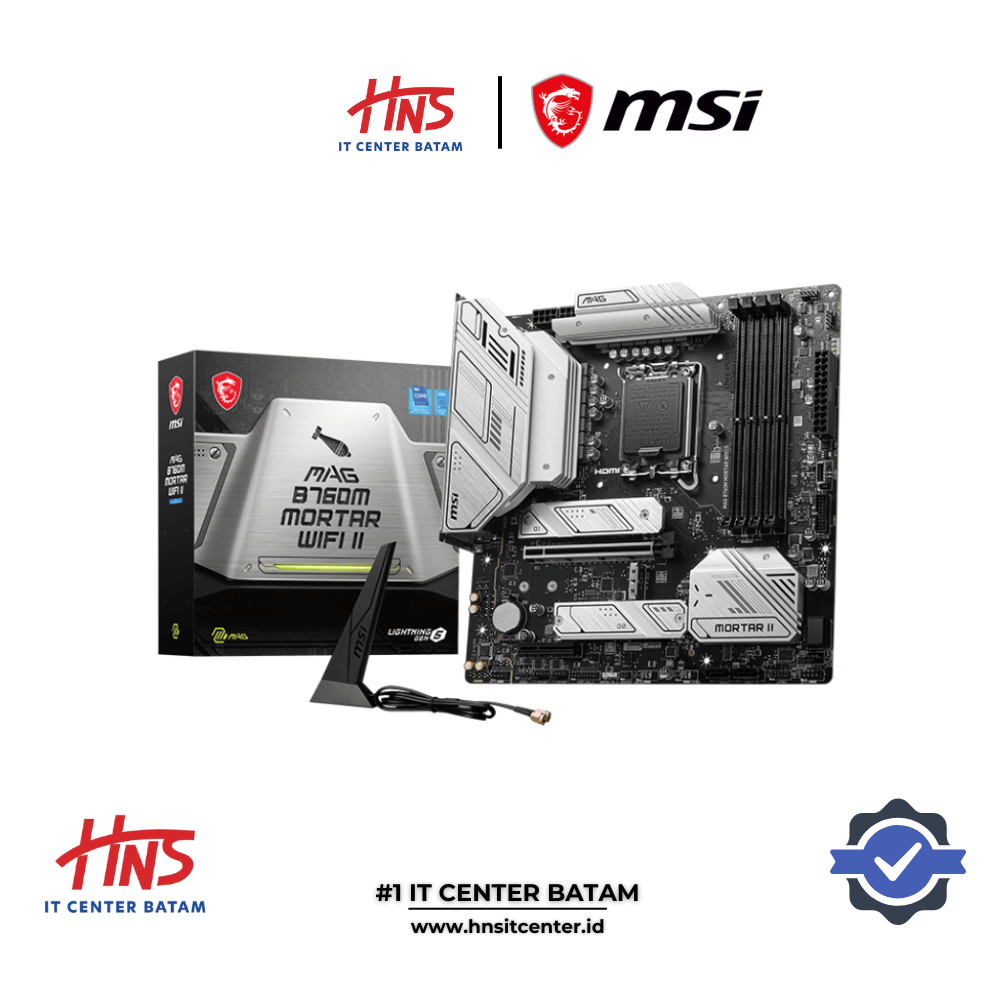

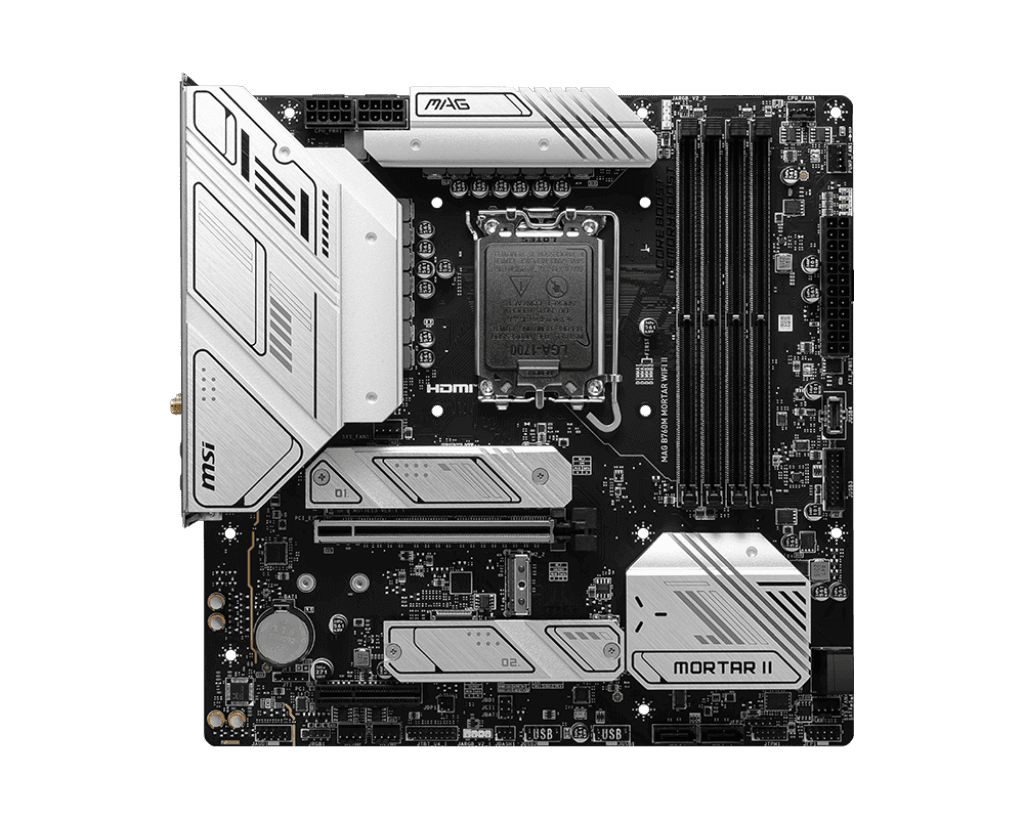

MOTHERBOARD MSI GAMING B760M MORTAR WIFI II LGA1700 DDR5 - mATX

Spesifikasi Chipset & ; Chipset: Intel B760 ; Socket: LGA1700 ; Dukungan Prosesor: ; Intel® Core™ 14th/13th/12th Gen ; Intel® Pentium® Gold & Memori ; Slot: 4x DDR5 ; Kapasitas Maksimum: 256GB ; Frekuensi Dukungan: ; Hingga 7800+ MHz (OC) ; JEDEC standar hingga 5600 MHz ; Fitur: ; Dual-Channel ; Non-ECC, Unbuffered ; Intel® Extreme Memory Profile (XMP) Grafis Terintegrasi (Tergantung CPU) ; HDMI™ 2.1: 4K 60Hz ; DisplayPort 1.4: 4K 60Hz Slot Ekspansi ; 1x PCIe 5.0 x16 (dari CPU) ; 1x PCIe 3.0 x4 (dari Chipset) Audio ; Codec: Realtek® ALC897 ; Kanal: 7.1-Channel HD Audio ; Dukungan: S/PDIF Output Penyimpanan ; M.2: ; M.2_1: PCIe 4.0 x4 (CPU) (2280/2260/2242) ; M.2_2: PCIe 4.0 x4 (Chipset) (2280/2260) ; M.2_3: PCIe 4.0 x4 / SATA (Chipset) (2280) ; SATA: 4x SATA 6Gbps ; Dukungan RAID: 0, 1, 5, 10 USB Ports ; Depan: ; 4x USB 2.0 ; 2x USB 5Gbps Type-A ; 1x USB 10Gbps Type-C ; Belakang: ; 4x USB 2.0 ; 3x USB 10Gbps Type-A ; 1x USB 20Gbps Type-C Jaringan & ; LAN: Realtek® 2.5Gbps ; Wi-Fi 6E & ; MU-MIMO TX/RX ; 2.4GHz / 5GHz / 6GHz (160MHz) hingga 2.4Gbps ; Bluetooth 5.3 (FIPS, FISMA) Header & ; Power: 1x ATX_PWR, 2x CPU_PWR ; Kipas: 1x CPU, 1x Pump, 4x System ; RGB: ; 2x Addressable V2 RGB LED ; 1x RGB LED Connector ; Ekstra: ; 1x TPM 2.0 Header ; 1x USB4 Card Connector Fitur LED ; 4x EZ Debug LED Panel Belakang ; 1x DisplayPort 1.4 ; 1x HDMI™ 2.1 ; 1x USB 20Gbps Type-C ; 3x USB 10Gbps Type-A ; 2x USB 2.0 ; 1x 2.5G LAN Port ; Wi-Fi 6E & ; HD Audio Connectors Sistem Operasi ; Windows 11 64-bit & Form Factor & ; mATX (243.84mm x 243.84mm)
