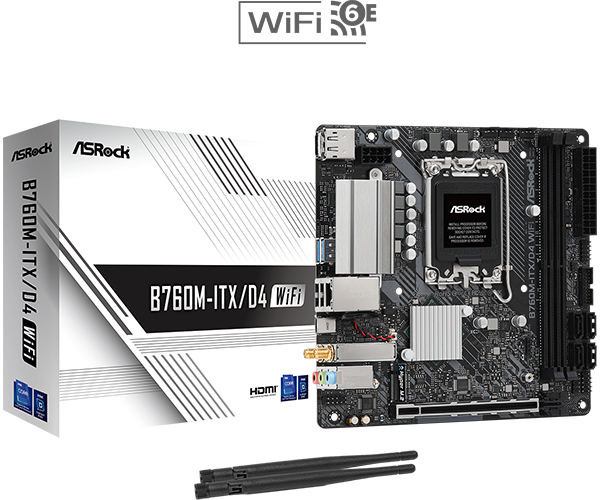

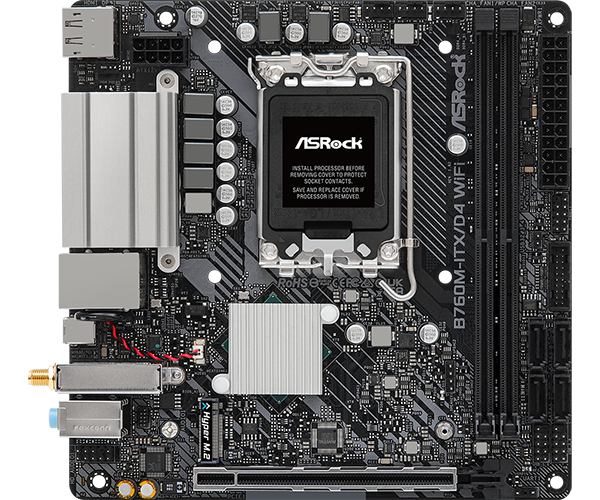

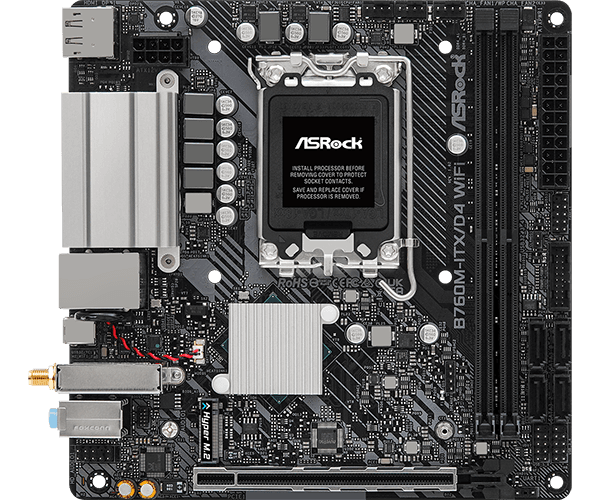

MOTHERBOARD ASROCK B760M-ITX/D4 WiFi LGA1700 DDR5 - mITX

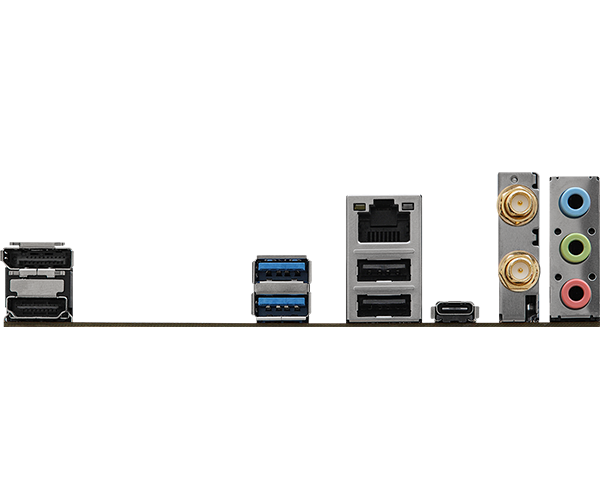

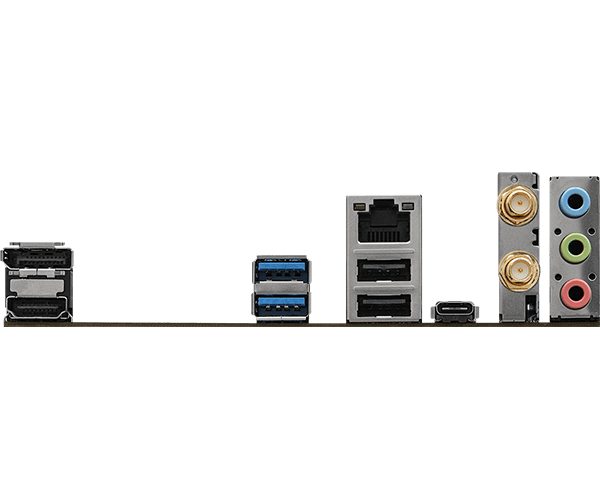

Unique Feature Rock-Solid Durability - 5+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Gaming - 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer ; CPU - Supports 14 th , 13 th & - Supports Intel ® Hybrid Technology - Supports Intel ® Turbo Boost Max 3.0 Technology - Supports Intel ® Thermal Velocity Boost (TVB) - Supports Intel ® Adaptive Boost Technology (ABT) ; Chipset - Intel ® B760 ; Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel ® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively. ; BIOS - 128Mb AMI UEFI Legal BIOS with GUI support ; Graphics - Intel ® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel ® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ; Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio ; LAN - Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H ; Wireless LAN - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows ® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows ® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. ; Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT) *Supports NVMe SSD as boot disks ; Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel ® Volume Management Device (VMD) Supports NVMe SSD as boot disks ; RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices ; USB - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection ; Connector - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W). **CHA_FAN1/WP support the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. ; Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 2 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone ; Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & ; Accessories - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Screw for M.2 Socket ; Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm ; OS - Microsoft Windows ® 10 64-bit / 11 64-bit ; Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
